4 wire resistive touch screen

4 wire resistive touch screen:

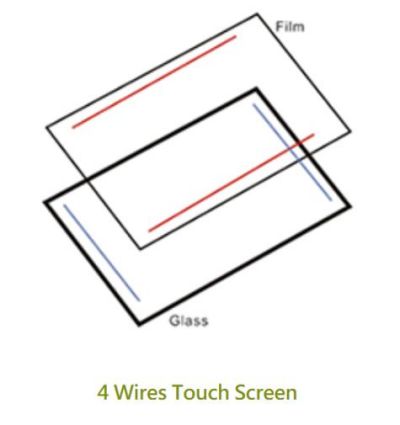

4-wire touch screens are suitable for small or medium sized products such as HMI and hand-held systems. These panels utilize X+, X-, Y+ and Y- lead outs at the four edges of the screen. When contact is made, X/Y read-outs are then read by the controller and converted into the correct coordinates.

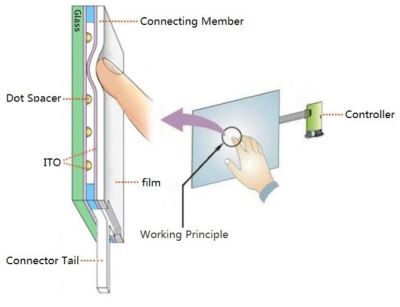

The principle for 4 wire resistive touch

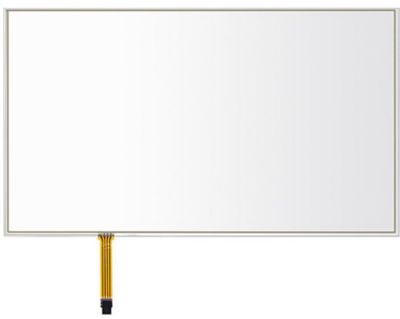

Features of Vantouch 4 wire touch products

Structure: Conductive film/conductive glass (FG)

Size: 3.5~15.6 inches.

Insurance: 1 year.

Operation Life: > 1Million times                                                                                                                                                                                                                                       Input mode: finger, glove, stylus

Circuit grade: 3.3-5V DC, 35mA

Contact jitter time: <2ms

Transmittance :> 82%

Operation temperature:-20~70℃  20% ~ 80% RH

Storage temperature:-30~80℃      30% ~ 80% RH

Surface hardness:3H

Surface coating: AG/AR

Product Applications

Industrial use

Medical

Military

Human Machine Interfaces
